Elevation Survey Before Installing New Rooftop HVAC Units

Posted on August 6, 2026 by St. Petersburg Surveyor

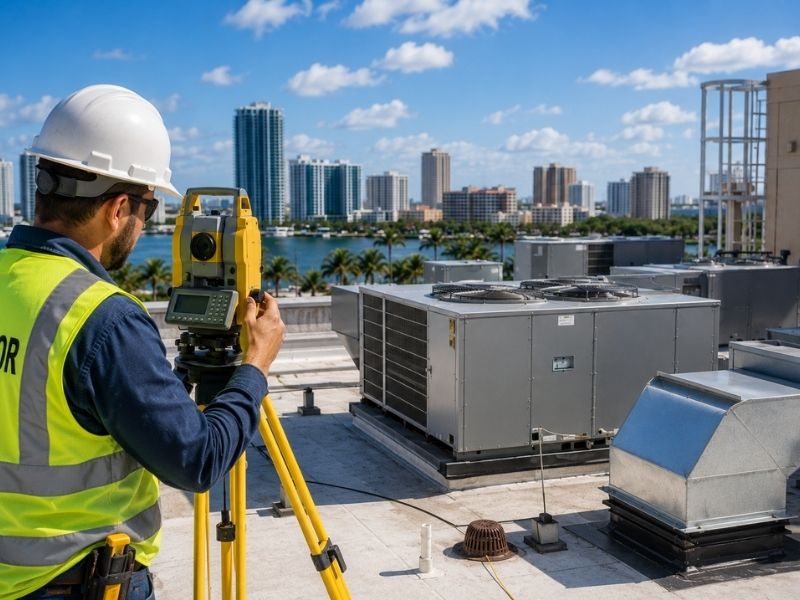

Putting new rooftop HVAC units on a commercial building takes careful planning. An elevation survey gives your team the exact height measurements to work from. St. Petersburg, FL has many older commercial buildings getting upgrades right now. Rooftop equipment is often the first thing they replace. New units are heavy. They have to land in the right spot at the right height. So before anyone orders a unit or books a crane, the roof needs measuring. That’s what an elevation survey does.

Why an Elevation Survey Supports Rooftop HVAC Upgrade Planning in St. Petersburg

An elevation survey gives engineers and contractors real height numbers to trust. It records how high the roof sits and where its levels change. It also ties those heights to one fixed point. On an older St. Petersburg building, the roof rarely matches the first plans. Past repairs and add-ons shift things over the years. When the team starts from measured heights, they can plan a rooftop HVAC swap that fits the building as it is now. That keeps the whole job lined up from the start. It also stops small height mistakes from becoming big install problems.

Measuring Roof Elevations for Equipment Access and Placement

Getting a new unit onto a roof is tricky to plan. Good height data makes it easier. The survey sets key roof heights and reference points the team can use. With those numbers, they can see where a crane can reach. They can plan how high to lift each unit. They can also pick where to stage the equipment before it goes up. The survey shows roof steps and level changes too. Those affect how a unit sits once it lands. Planning all this before delivery day means fewer surprises when the heavy gear shows up. A clear read on the roof heights keeps the install moving.

Using Elevation Data to Coordinate Design Teams and Contractors

A rooftop HVAC project brings in several pros at once. They all need to agree on heights. Architects, mechanical engineers, structural engineers and HVAC contractors each use the elevation survey as a shared guide. When everyone measures from the same point, their plans match instead of clashing. That shared number cuts down on layout mix-ups. Think of a support landing right where a duct was meant to go. Fewer clashes on paper mean fewer costly fixes on the roof. For a busy St. Petersburg upgrade, that teamwork protects the budget and the schedule.

How Elevation Surveys Help Document Existing Building Conditions

An elevation survey records the roof’s current heights before any work starts. It creates a clear record of what the surveyor found. That record protects everyone if questions come up later. On a commercial roof, the survey often notes features like:

Roof height changes between sections
Parapet wall heights around the edges
Existing equipment platforms and curbs
Roof drains, scuppers and low spots
Access hatches, ladders and roof openings

These details shape where new units can go. They also show how crews will reach them. With the existing conditions on record, the design team can plan around what’s really there. That saves rework when a hidden height change or an old platform would throw off the layout.

Choosing a Local Land Surveyor for Rooftop HVAC Improvement Projects in St. Petersburg

The right surveyor makes a rooftop HVAC project run smoother. So choose with care. Look for someone who knows commercial building work. They should understand how rooftop jobs come together. Local knowledge helps too. A surveyor who knows St. Petersburg buildings and permit rules can move faster. You also want clean, accurate survey drawings. Your engineers and contractors should be able to use them right away. Good communication matters just as much. The surveyor needs to talk clearly with the whole team. Fast fieldwork keeps your HVAC schedule on track. A late survey can hold up design and equipment orders.

Frequently Asked Questions

Why is an elevation survey useful before replacing rooftop HVAC equipment?

It gives engineers and contractors accurate height information. They use it to plan where equipment goes, check existing conditions and coordinate the install from design through delivery.

Does an elevation survey inspect the HVAC system itself?

No. It records the building’s heights and physical features. Checking the HVAC equipment itself is a job for mechanical pros, not the surveyor.

Can an elevation survey happen while the building stays occupied?

Often, yes. Surveyors can usually take their measurements with little disruption. Site access and roof safety rules still affect how and when they work.

Who usually requests an elevation survey for rooftop HVAC projects?

Commercial property owners, facility managers, architects, engineers and HVAC contractors all ask for one during the planning phase.

When should an elevation survey be scheduled for a rooftop HVAC upgrade?

Schedule it before final design and equipment orders. That way the team works from real measurements, not guesses that can cause costly changes later.
