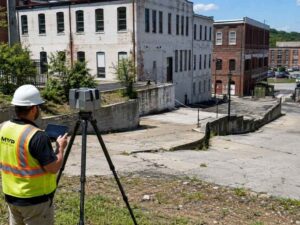

Old drawings and rough notes don’t always show what a property looks like today. Lidar mapping fixes that problem by capturing a detailed, three-dimensional record of a site before any redevelopment work starts. It measures buildings, walls, pavement, slopes, and other features all at once. Instead of guessing where things sit, a design team gets real measurements to work from. That matters most on sites with a lot going on, where small details can get missed with a quick walk-through. Starting with solid data helps every later decision rest on something real.

Capturing Complex Existing Site Features With LiDAR Mapping

Redevelopment sites are rarely simple. There might be several buildings, retaining walls, uneven pavement, and landscaped areas all packed into one property. Lidar mapping can record all of it in three dimensions, not just as flat lines on a page.

This matters because a flat drawing can’t always show how a wall leans, how a slope drops off, or how close a structure sits to a property edge. Lidar picks up those details as they actually exist. The result is a record that shows the real shape of the site, not a simplified version of it.

Using Point Cloud Data to Understand Existing Site Geometry

Once lidar equipment scans a site, the raw measurements get turned into something called a point cloud. Think of it as millions of tiny data points, each one marking a spot in space where the scanner detected a surface.

Put together, these points form a three-dimensional model of the site. Design teams can use it to study how features relate to each other. A wall’s exact angle, a building’s true footprint, or a slope’s actual grade all show up in the data. This gives planners a way to study the site’s shape without walking the property over and over with a tape measure.

Documenting Areas With Dense Structures or Irregular Site Features

Some properties are tough to document well. Multiple buildings, narrow gaps between structures, thick landscaping, and odd angles can make a single survey method fall short. A camera might miss a hidden corner. A basic measurement might skip a tight space between two walls.

Lidar can help fill in those gaps. It works well in spots that are hard to measure by hand or hard to see clearly from one position. That said, no single method covers everything on its own. The right mix of tools depends on the property and what the project actually needs.

Creating a Digital Existing-Conditions Reference Before Selective Demolition

Before parts of a property get removed or changed, it helps to have a clear digital record of what was there first. Lidar mapping creates that record. Once demolition starts, the original conditions are gone for good, so there’s no going back to check something later.

This digital reference gives redevelopment teams something to look back on throughout the project. If a question comes up about what existed in a certain spot, the data is already there. Teams don’t have to rely on memory or old photos that might not show enough detail.

Deciding What LiDAR Deliverables a Redevelopment Team Actually Needs

Not every project needs the same output. Some teams need a full point cloud. Others just need a surface model, or a simple map of a few key features. The right choice depends on how the data will actually get used.

Before any scanning happens, a team should nail down the project area, the level of accuracy needed, the coordinate system, and the final file format.

Frequently Asked Questions

What does lidar mapping show on an existing redevelopment site?

Lidar captures three-dimensional information about visible surfaces and site features. The exact elements mapped depend on the project’s scope, the equipment used, visibility on site, and the deliverables requested.

Why use lidar before an existing property is redeveloped?

It documents current physical conditions before anything gets changed. That gives architects, engineers, and planners a current, accurate reference point to work from during design and coordination.

Is a lidar point cloud the same as a finished land survey?

No. A point cloud is raw or processed data collected by lidar equipment. A finished survey is a professional deliverable, often built using that data alongside other information. Lidar doesn’t automatically replace boundary work, title research, or other survey services a project may still need.

Can lidar mapping document buildings and exterior site improvements together?

Yes, in many cases. A well-planned lidar workflow can capture buildings and the surfaces around them in the same dataset. Line-of-sight limits, equipment choice, project scope, and required accuracy all affect how complete that dataset ends up being.

What should a redevelopment team request before ordering lidar mapping?

Teams should define the project area, list the features that need documenting, and set the required accuracy and coordinate system. They should also decide on the deliverable format and explain how the data will be used for design or planning, so the survey actually matches the project.
