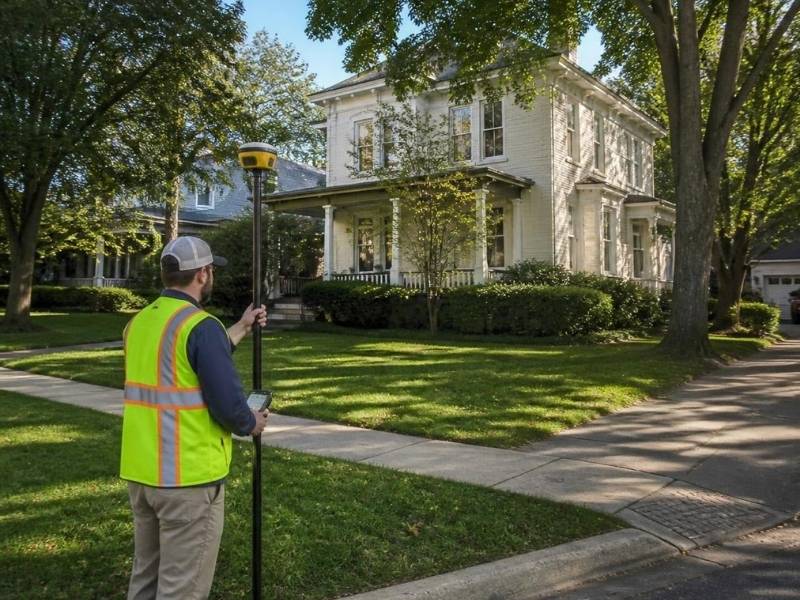

You found a big old house on a corner lot. The plan is four units, and the numbers pencil beautifully. Then a property survey shows the lot is a few hundred square feet short of what your code requires per unit, and four becomes three. Your whole model just changed, and you found out for the price of a survey instead of the price of an architect.

Conversions live or die on the lot, not the building. Read the drawing before you read the pro forma.

Your Lot Decides Your Unit Count

Most zoning codes set a minimum lot area per dwelling unit. That number times your unit count has to fit inside the land you actually own.

Owners work from the tax record or the listing, and both are approximations. A survey computes the real area, and the real area sometimes lands under the round number everyone assumed. A few hundred square feet decides whether your fourth unit exists.

Check this before anything else. Every other decision on the project sits downstream of it.

Clues Hiding on the Drawing

The survey answers questions nobody thought to ask. Look for these.

Where the building really sits

Old houses were built to old rules, or to no rules. The survey shows the actual distance from each wall to each line.

Compare those numbers to the current setbacks. Buildings that sit inside today’s required yards are extremely common on older lots, and that fact matters enormously in a minute.

Easement lines crossing the yard

A utility easement running through the back half kills your parking layout. It probably kills your dumpster pad too.

Easements are where owners lose the most usable land, and they never show up in a listing photo.

Existing paving and its real dimensions

The driveway looks fine. Measure it. Code minimums for stall size and drive aisle width are unforgiving, and a driveway sized for one family rarely stripes out into four spaces.

The survey gives you real widths. Your architect can then tell you the honest count.

What isn’t shown

A basic survey may skip setbacks, parking counts and improvement detail unless you ask. Read the notes block to see what the surveyor did and didn’t do.

An empty-looking drawing sometimes means an empty scope.

Conversions Wake Up Sleeping Violations

Here’s the part that ends projects. Your building may be legally nonconforming, meaning it broke rules that came along after it was built and got grandfathered.

That protection is not permanent, and many codes limit it. Expanding the use, adding units or making substantial alterations can trigger a review that ends the grandfathering. Suddenly a building that stood happily for eighty years has to meet setbacks it was never going to meet.

Rules on this vary widely by jurisdiction, so ask your local planning department directly rather than trusting a general answer. Ask early. This question has killed more conversions than financing has.

Parking Is Usually the Killer

One house needs a couple of spaces. Four units often need considerably more, plus maneuvering room, plus accessible stalls depending on your local rules.

Now overlay the setbacks, the easements, the existing building footprint and any required landscape buffer. The leftover space is where parking goes, and there’s often less of it than the math needs.

The survey is what turns this from an argument into arithmetic. Some cities have reduced or removed parking minimums, so confirm what actually applies to your parcel before you assume the worst or the best.

What to Order Beyond a Basic Survey

Ask for these by name. A bare boundary survey answers one question and leaves ten open.

• Computed lot area, stated clearly on the face of the drawing
• Zoning setback lines plotted for your district
• All recorded easements plotted, with widths
• Existing improvements located, including paving edges and steps
• Existing parking dimensions as built
• Utility structures and service entries that are visible
• Any encroachments, in either direction

Give the surveyor your title commitment first. Plotting easements requires the recorded documents, and a surveyor without them is guessing.

When the Survey Says Stop

Sometimes the drawing tells you the deal is worse than the listing said. Listen to it.

A lot that’s short on area, wrapped in easements and holding a building that sits in the setbacks is not a four unit conversion. It might be a two unit conversion, or it might be somebody else’s problem. Walking away during diligence costs you a survey fee, and walking away after design costs you a year.

Developers who fall in love with a building before measuring the lot are the ones who lose money on these. Measure first, then fall in love.

Frequently Asked Questions

Can a property survey tell me how many units I can build?

Not by itself, since the survey supplies the measurements and your zoning code supplies the rules. The survey gives you real lot area, setbacks and easement locations, which are the inputs the code operates on. Your planner or land use attorney applies the rules to those numbers. Order the survey first, because nobody can answer the question without it.

Is a boundary survey enough for a conversion project?

Rarely, since a basic boundary survey locates lines and little else. Conversions need setbacks plotted, easements shown and existing improvements located to be useful. Adding that scope during the original field visit costs far less than a second trip. Tell your surveyor what you’re planning so they can scope it properly.

What if the building already sits in the setback?

That’s common on older lots and it doesn’t automatically stop you. Many buildings are legally nonconforming and protected as they stand today. The risk is that your conversion counts as an expansion or substantial alteration, which can end that protection under some codes. Ask your planning department about your specific parcel before you spend design money.

Does the tax record lot size work instead of a survey?

No, and treating it as reliable is a real mistake. Assessor records carry approximations that were never intended for design work. Small differences matter when your unit count depends on area per unit. Pay for the survey and use a number somebody actually measured.

How early should I order the survey?

During your diligence window, before an architect starts drawing. That timing is what lets you renegotiate or walk if the lot doesn’t support your plan. Surveys ordered after design has begun tend to produce redesigns instead of decisions. Build the lead time into your contract from the start.
