A vendor flies your site, sends back a gorgeous 3D model, and quotes an accuracy number with no evidence behind it. Your engineer designs a storm line against that surface. Six months later the pipe didn’t fall the way the plan said, because the model was off vertically by half a foot and nobody checked. Survey drones produce beautiful pictures that can be quietly wrong, and ground control points are what keep that from happening.

Control is the boring part. It’s also the part that decides whether the data is worth anything.

The Drone Knows Roughly Where It Is

Consumer grade GPS on an aircraft gets you into the right neighborhood. It does not get you to survey accuracy, and vertical error is usually worse than horizontal.

That’s fine for a marketing flyover and useless for design. Your civil engineer needs elevations they can build against, and a model floating a foot off the ground doesn’t provide that.

Ground control is what pins the model to reality. Without it you have a nicely shaped object sitting in approximately the right place.

What a Ground Control Point Actually Is

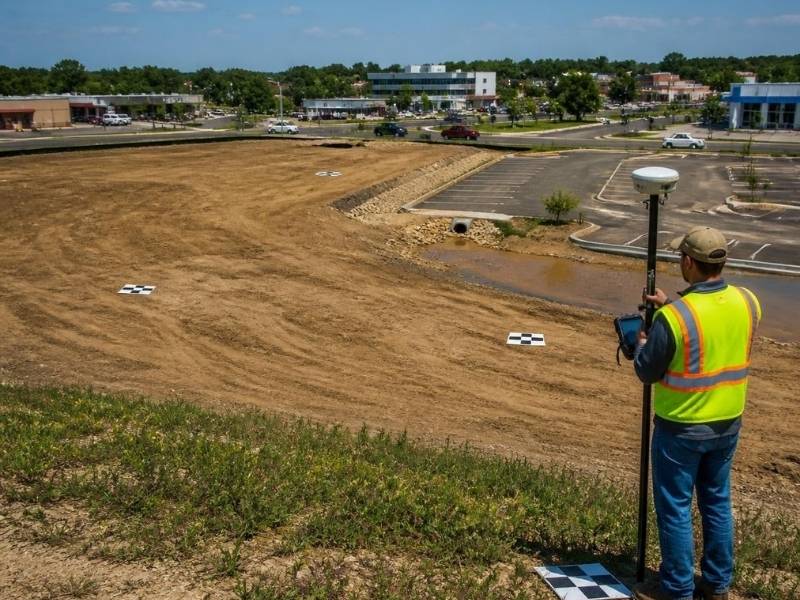

A GCP is a marked target on the ground whose exact position a surveyor measures using survey grade equipment. Painted crosses, checkerboard panels, sometimes existing features with sharp corners.

The drone photographs those targets from the air. Processing software then finds them and stretches the model onto the real coordinates. That step converts a relative shape into an absolute position.

The targets have to be measured properly. A GCP set with a handheld GPS unit is decoration, not control, and it makes the output worse by giving everyone false confidence.

Control Points and Checkpoints Are Not the Same

This distinction separates a real surveyor from a guy with a drone.

Control points get fed into the processing. The software uses them to fit the model, so of course the model matches them afterward. Reporting your accuracy against your own control points is circular reasoning.

Checkpoints get withheld. The surveyor measures them, keeps them out of processing, then compares the finished model against them. That comparison is an honest accuracy statement, because the software never saw those numbers.

Ask for a report based on withheld checkpoints. Any vendor who doesn’t understand the question just told you something important.

LiDAR Mapping Needs Control Too

People assume LiDAR skips this because lasers sound precise. The sensor measures distance well and the aircraft still has to know where it was when each pulse fired.

That position comes from the onboard GNSS and inertial system, and small trajectory errors turn into systematic offsets across the whole dataset. Control on the ground is how you find and correct that drift. It’s also how you prove the result to a client who wants a number.

LiDAR does have a real advantage over photogrammetry, and it’s vegetation. Pulses can find gaps in canopy and reach ground that a camera never sees. That’s a different question from accuracy, and both sensors need control either way.

Where the Targets Go

Placement matters as much as count. Clustering them near the parking lot because it’s convenient defeats the purpose.

• Spread across the whole site rather than bunched in one area
• Include the perimeter, since edges are where models bend
• Include high and low ground, so vertical fit gets checked across the range
• Keep them visible from the air, meaning no tree canopy over them
• Place them on stable ground that won’t get driven over mid-flight
• Add checkpoints in areas nobody expects trouble, since that’s where trouble hides

Site conditions change the count. A vendor who quotes the same number of GCPs for every project isn’t thinking about your project.

The Datum Question Nobody Asks

Your model can be internally perfect and still land in the wrong place vertically. That happens when the datum doesn’t match what the design team expects.

Ellipsoid heights and orthometric heights are different numbers, and converting between them requires the correct geoid model. Get that wrong and every elevation shifts by a consistent amount, which is exactly the error nobody catches until construction.

Ask what horizontal and vertical datum the deliverable uses, in writing, before the flight. Then confirm your engineer expects the same one.

What to Demand in Writing

Vague scope is how bad data gets delivered and paid for. Ask for these specifically.

• A stated accuracy target, horizontal and vertical, tied to your design need
• Ground control measured by a licensed surveyor with survey grade equipment
• Independent checkpoints withheld from processing
• An accuracy report comparing the model against those checkpoints
• The horizontal and vertical datum, plus the geoid model used
• Raw data retention, so somebody else can verify later if needed

That accuracy report is the whole ballgame. It costs the vendor almost nothing and it’s the only proof you’ll ever have.

Frequently Asked Questions

How many ground control points does a commercial site need?

There’s no universal number, since it depends on site size, terrain, sensor type and your accuracy requirement. A flat twenty acre parcel needs fewer than a hilly one with the same footprint. RTK and PPK workflows reduce the count without eliminating the need for verification. Ask your surveyor to justify the number they propose rather than accepting a default.

Can I place the targets myself to save money?

You can place them, and you cannot measure them, which is the part that matters. A GCP is only as good as the survey grade position behind it, and that requires proper equipment and a licensed surveyor. Some clients do handle placement to save field time, then have the surveyor measure each one. Ask whether that split actually saves anything on your project.

Is drone data accurate enough for construction design?

It can be, provided the accuracy target matches what the design requires and someone verified it. Site grading tolerates more error than a building connection detail does. The failure mode is using data that was never checked, rather than the technology itself. Match the tolerance to the task and demand the checkpoint report.

What accuracy should I expect from photogrammetry?

Vertical accuracy is typically worse than horizontal, often by a meaningful factor, and both depend on flight height, camera quality, overlap and control. Anyone quoting a single number without knowing your site is guessing. Ask for a target expressed against a published standard rather than a marketing figure. Then confirm it with withheld checkpoints after the fact.

Do I need a licensed surveyor if I’m hiring a drone company?

For anything feeding design, permitting or a legal record, yes. Mapping work that gets certified generally has to come from a licensed surveyor, and rules vary by state. Plenty of drone operators partner with a surveyor for exactly this reason. Ask who’s signing and sealing the product before you sign the contract.
