What As-Built Surveys Show After Driveway or Patio Work
Pouring new concrete looks like the final step of a project, but city code teams see things differently. Getting As-Built Surveys after finishing a driveway or patio layout provides final proof that your work matches local laws. City inspectors use these final maps to verify that your contractor stayed within safety limits. For developers, getting this paperwork finalized is the only way to close out open building permits and avoid city fines.
Pinellas County holds strict rules for lot coverage and water flow. If your new hardscape pours rainwater onto a neighbor’s lot, city planners will reject the installation. The final survey maps out the absolute reality of the ground changes.
Impervious Lot Coverage Realities
Local codes restrict how much of your land can be covered by materials that block water from soaking into the ground. Patios, walkways, pool decks and driveways all count as impervious surfaces. The survey details the exact area of these new additions to ensure you stay below the maximum allowed limits.
Calculating the Total Surface Footprint

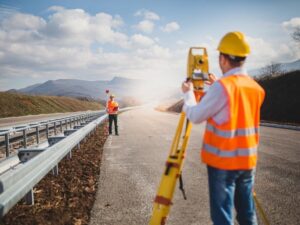

The field crew measures every square foot of new concrete, asphalt or brick pavers. They compare this total to the open green space on your approved site plan. In dense St. Petersburg neighborhoods, missing your lot coverage limit by a tiny bit can result in a costly order to rip up your fresh pavement.
Tracking Paver Area Differences
Some developers use interlocking pavers to reduce water runoff issues. The city of St. Petersburg handles pavers under specific codes. The survey explicitly highlights the footprint of paver installations so code enforcement can apply the proper calculation rules to your site file.
Exact Setback and Boundary Verifications
Concrete crews work fast and sometimes miss property stakes. An as-built map shows exactly where the edges of the new driveway or patio sit in relation to your legal lot borders.
Catching Border Violations
A driveway that flares out too wide near the street can easily cross a neighbor’s property line. Patios built right up to a backyard boundary often violate rear yard space rules. The survey verifies that all edges respect the local setbacks. Finding a mistake on paper lets you fix things early.
Encroachments on Public Space
Driveways must cross the city right of way to reach the main road. St. Petersburg regulates this apron zone with specific shape rules. The survey tracks the driveway width and angle at the sidewalk link. It proves your layout stays clear of public utility poles and street signs.
Stormwater Drainage and Surface Elevations
St. Petersburg deals with constant coastal water challenges and heavy rain. New hardscape surfaces alter how rain moves across your property. The survey records specific elevations to ensure your project handles water correctly.
Checking Surface Slope Direction
Water must flow toward designated retention areas or public street drains. It cannot dump directly onto adjacent private lots. The surveyor captures elevation points across the new patio or driveway. These numbers prove the surface slopes away from buildings and neighbor borders.
Verifying Drainage Flow Lines
If your building permit required a specific swale or drain alongside the new driveway, the survey marks its final position. This confirms the grading crew shaped the dirt correctly to stop standing water.
Existing Utility and Right of Way Protection
Driveway and patio additions often sit directly on top of buried infrastructure lines. The final map details how your new structures interact with these hidden lines.
- Water Meters: The survey confirms that your new concrete pad leaves city water valves open for easy access.
- Cleanouts: It tracks the location of sewer cleanouts to ensure they were not buried under wet cement.
- Utility Transformers: It verifies that your patio edges maintain required clearance around green power boxes.
Verifying Compliance with Engineering Standards
The engineering department has clear rules for how thick concrete must be and how it connects to city sidewalks. Driveway aprons must handle the weight of heavy trash trucks and utility vehicles without cracking. An as-built survey provides measurements of the apron width and flares to prove the build matches these standards.
Checking Curb Cuts and Sidewalk Ramps
When you put in a new driveway, you usually have to cut the existing city curb. St. Petersburg rules require specific slope rates for the sidewalk portion so wheelchair users can pass safely. The surveyor checks these angles with precise tools. If the slope is too steep, the city will not sign off on the work.
Verifying Material Limits and Joints
Surveys note where the new concrete meets the old city asphalt. Expansion joints must be placed at specific lines to prevent the city sidewalk from buckling. The survey map shows the exact layout of these seams for city inspectors to review.
Preventing Legal Disputes with Neighbors
Boundary arguments can ruin a development project or delay a property sale. When you pour a new patio or long driveway near a property line, neighbors often get nervous. An official as-built drawing settles arguments before they turn into lawsuits.
Documenting Clear Sight Lines
Driveways near intersections or shared alleys must maintain clear sight lines so drivers can see oncoming traffic. St. Petersburg codes restrict fences, walls, and raised patios from blocking these visibility zones. The survey proves your new hardscape keeps these safety corridors clear.
Establishing Proof for Future Buyers
When you eventually sell your property, the buyer’s title company will look for any recent unpermitted work. An as-built survey stays with the property file as permanent proof that the driveway or patio was built legally. This keeps future real estate transactions moving forward without delays.
Frequently Asked Questions
Can I use my old boundary map instead of a new survey?
No, because your old map does not show the new structures. The city needs a fresh drawing of the current site changes to close out your open building permit.
What happens if my new patio goes over a utility easement?
If your survey shows a patio blocking a recorded easement, the city can force you to remove the concrete at your own expense so utility crews can access their underground lines.
How precise are the elevation points on an as-built drawing?
Surveyors use specialized GPS and optical tools to measure elevations to within a fraction of an inch. This precision ensures that stormwater calculations match real-world conditions.
Who prepares the final as-built drawing for the city?
A professional land surveyor licensed in the state of Florida must complete the field measurements, sign the report and place their official seal on the drawing.
